Posted my review of Zs7 today. I prefer it to AS06 as the treble on As06 has too much grain and the AS06 has that massive dip in the mids and lower treble. Zs7 finally fixed the treble of the Zs5/6 for me.
2 Likes
Largely lines up with my impressions. Relative to my preferences, I find the bass more elevated and the mids more recessed than you do, but both are easily fixed with a touch of EQ.
Reviews of the Knowledge Zenith ZSN and AS06
Introduction
Normally, I review one headphone at a time, but since the holidays were a bit busy, my review queue started piling on. In the process, I accumulated two earphones from KZ and decided to do a review/comparison between these two new models from the ever-growing library of KZ products.
The first model is the ZSN, which can be found anywhere between $20 and $25. Itās a hybrid model with dynamic driver and a single balanced armature driver. The second model is the AS06, which features 3 balanced armatures (bass, mid and treble), and is positioned to be in the middle of the KZ lineup with a retail price at around $45.
Both of these products were provided as review samples by Linsoul. As usual, there are no other compensations and requirements besides to provide a review of the product online. As this comes up quite a bit about the legitimacy of these statements ā I would like to add that I never send my reviews to the source to pre-review it prior to release, except on Headphone.com which is only to make sure it is properly formatted for the website template.
This type of freedom is nice, and allows me to express how I really feel about a product without any pre-disposition from the supplier of the item. In this case, Linsoul has been supportive of my reviews, and has pretty much been hands-off in the process except for requesting I post links to the products as part of my review ā which are here:
KZ ZSN:

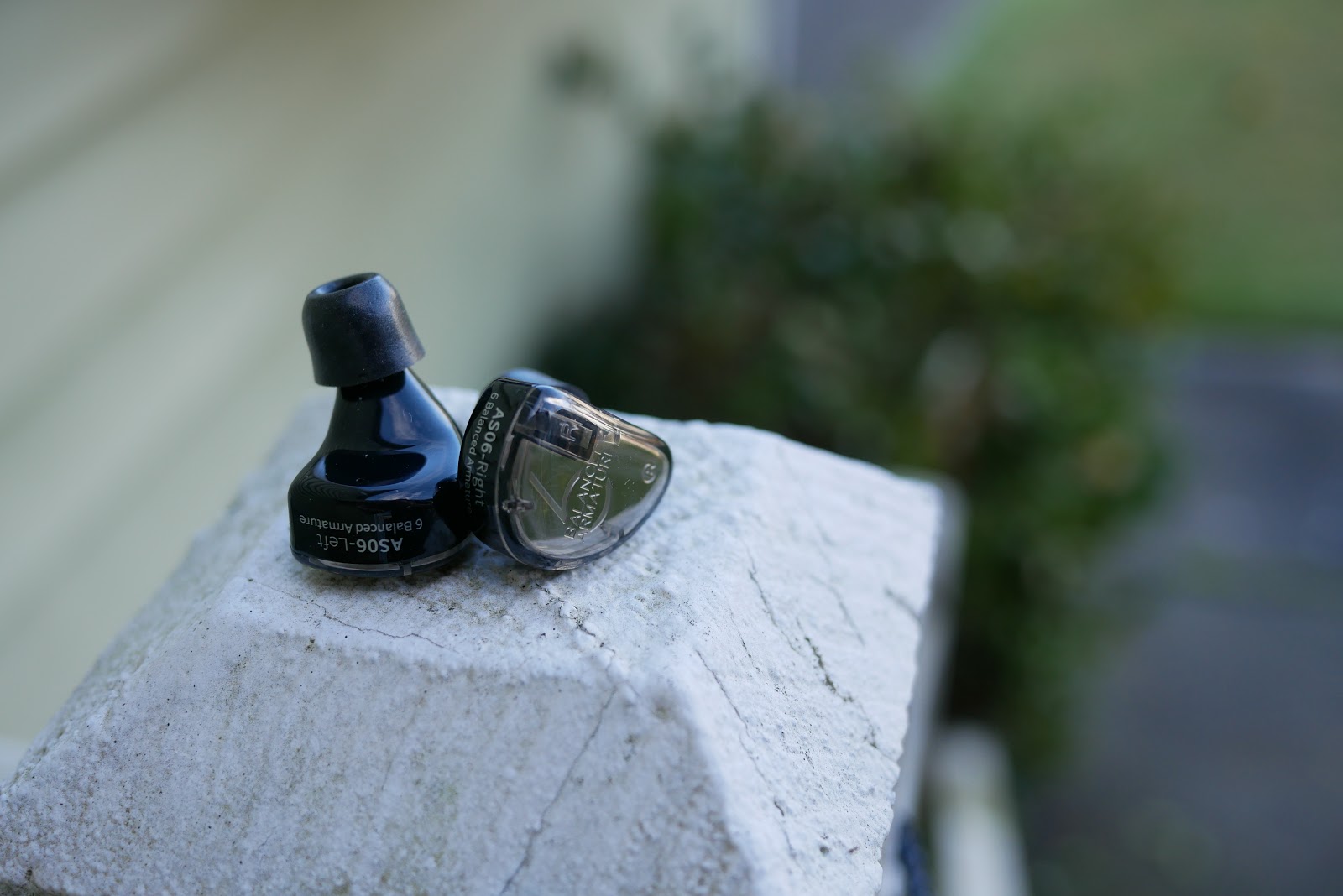

KZ AS06:
Packaging and Build Quality
Both products feature similar accessories and both have acrylic housing containing the drivers. The ZSN differs in that it has a metal faceplate which actually looks quite premium compared to the AS06. The AS06 shares the same housing as the AS10, which I found to be very mediocre and boring. The only difference is that it has an inner metallic plate with ā6 Balanced Armaturesā scribed on it. Itās sort of a lie, since thereās only 3 in each side.
The ZSN is also a little bit smaller and shaped to conform to my ears better. The AS06 has the same large size that makes it a little challenging to fit correctly in my ears without fear that it will pop out. When it does sit correctly, it does feel large and uncomfortable. In contrast to this, the ZSN is quite comfortable to wear for long time and is lighter weight.
Both feature braided cables with preformed hooks which is a nice change from the previous memory wire cables that KZ was known for. The cables are a bit sticky and can get tangled and messy pretty easily though, but I still find them very attractive and nice for the price range they are being offered at.
Finally, the standard KZ āstarlineā tips come included in the package and come in the standard Small, Medium and Large sizes. The AS06 also has a larger box and a metal badge that I really donāt know what the purpose is for.
Sound Impressions
In doing this contrast and compare review, I ended up having two KZ products that sound different from one another. They really share little in common to be frank. In general, I found the KZ ZSN to have a generally neutral-bright signature which I typically find best suited for my tastes. The KZ AS06 was a darker, and more laid back, warmer IEM which isnāt normally my thing. That said, I do like headphones that can fall into some of this category ā mainly the HD58X and HD650 which are a bit warmer and laid back.
For my listening trials, I used a variety of different gear. The main device was the Pioneer XDP-300R Android-based portable audio player, but I also switched back and forth with the newly released Hidizs AP80 and Xudoo X3-II audio players. For desktop use, I did limited listening with these IEMs on the Monoprice Monolith THX-AAA DAC/Amp, Cavalli Liquid Spark, and a DIY Pete Millet Starving Student Tube Hybrid amp. For every use-case here, I used the single ended cable as opposed a balanced cable as I typically do. I did play both IEMs through balanced cables but only on a limited basis.
I spent a lot of time listening to Fleetwood Macās Rumours album while trying out both of these earphones. I also put them through the paces with various acoustic rock, indie, folk, dance, jazz and alternative rock music.

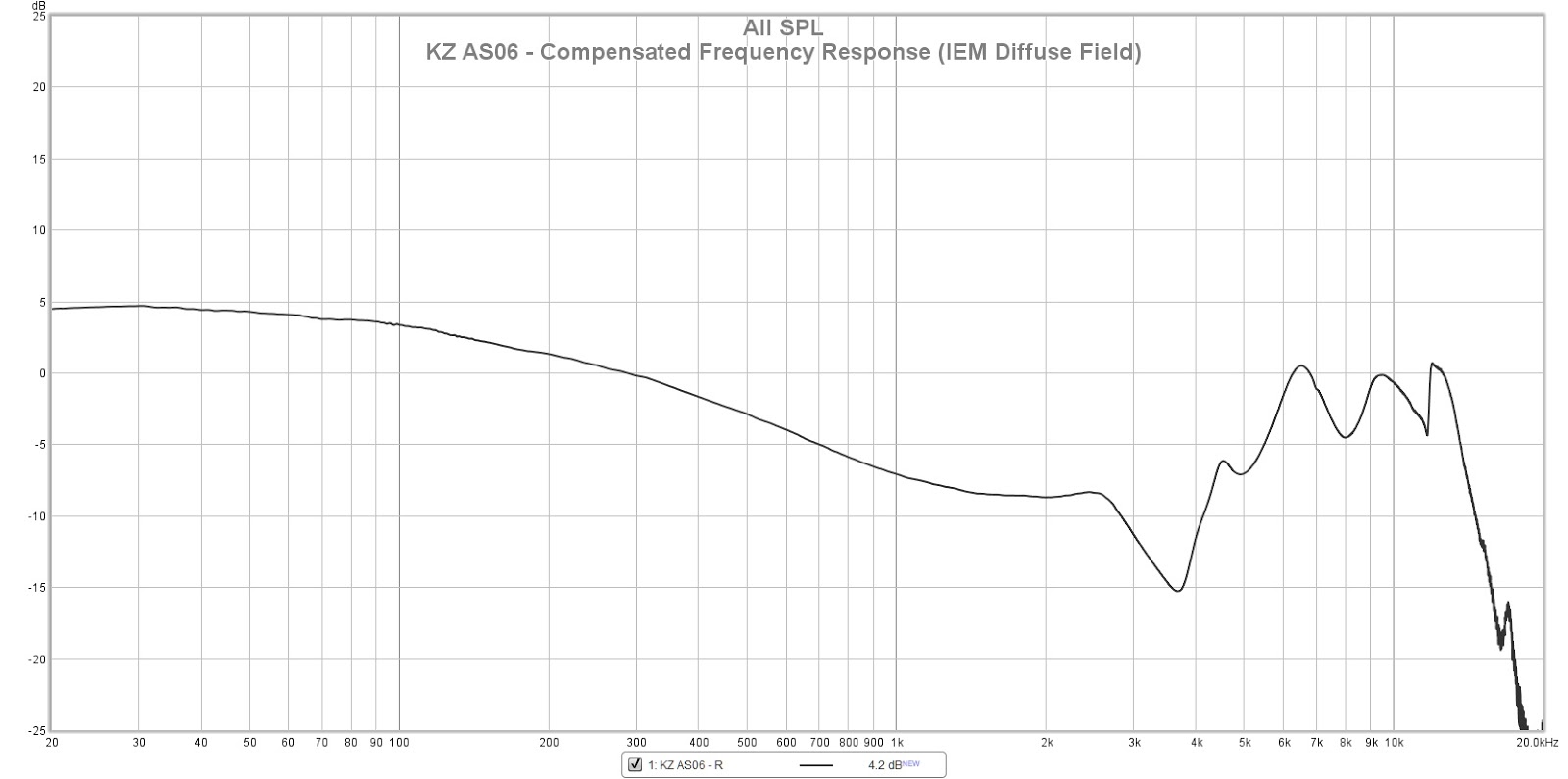

AS06 in detail:
My very first impression when putting the AS06 on was WHOA! Bass! It was very dark and bassy with the stock tips. In fact, I got great seal, and it was so bassy, that it muddied up everything else. I swapped the tips out to Rebound foam tips and found that the bass levels were more controlled. Still, the bass dominated the overall sound signature and still bled over to the mids, which are quite recessed. Bass extends well but I donāt find the bass extremely detailed or layered correctly. In general, the elevated give the AS06 a warm, lush sound, but nothing exciting.
The mids barely exist on this IEM. They are really messy. I found the significant drop in the mids to really hurt this IEM. Thereās about 10 dB drop off slope in the mids followed by a steeper drop in the upper mids, and then a spike up as you head into the treble region. This is classic V-shaped sound but not executed well. Iām wondering if the sharp second drop is due to poor cross-over between BAs.
Male vocals are the most troubling. I found both male and female voices to sound extremely compressed, with males being worse. Tonality is completely off and distant. Higher pitched string instruments can sound very forward and piercing occasionally due to the elevated treble peak.
An example? Letās listen to āDreamsā by the aforementioned Fleetwood Mac. Stevie Nickās haunting distressed voice just doesnāt come out with the emotion I expect to hear on a better IEM. Her voice seems distant and flat ā compressed and missing energy. Instead the drum beat and cymbals dominate the mix. The focus of the music isnāt where I think it should be.
On a song like āMarblesā by The Knife, this IEM is a mixed bag. The deep bass notes sound great, and the āmarblesā dropping is realistic, but the high screams from Karin and the high frequency cymbals do get a bit piercing at times.
I imagine this IEM will do better in house and dance music, though probably something more along the lines of deep house or bassier music. Anything with extreme highs (and many EDM tracks are, and are extremely distorted and compressed) may not do as well.
The AS06 does provide good imaging, and a wide sound stage which is engaging. Details can be a little scattered as mentioned previously, but overall, the BAs do a good job overall with these three areas.

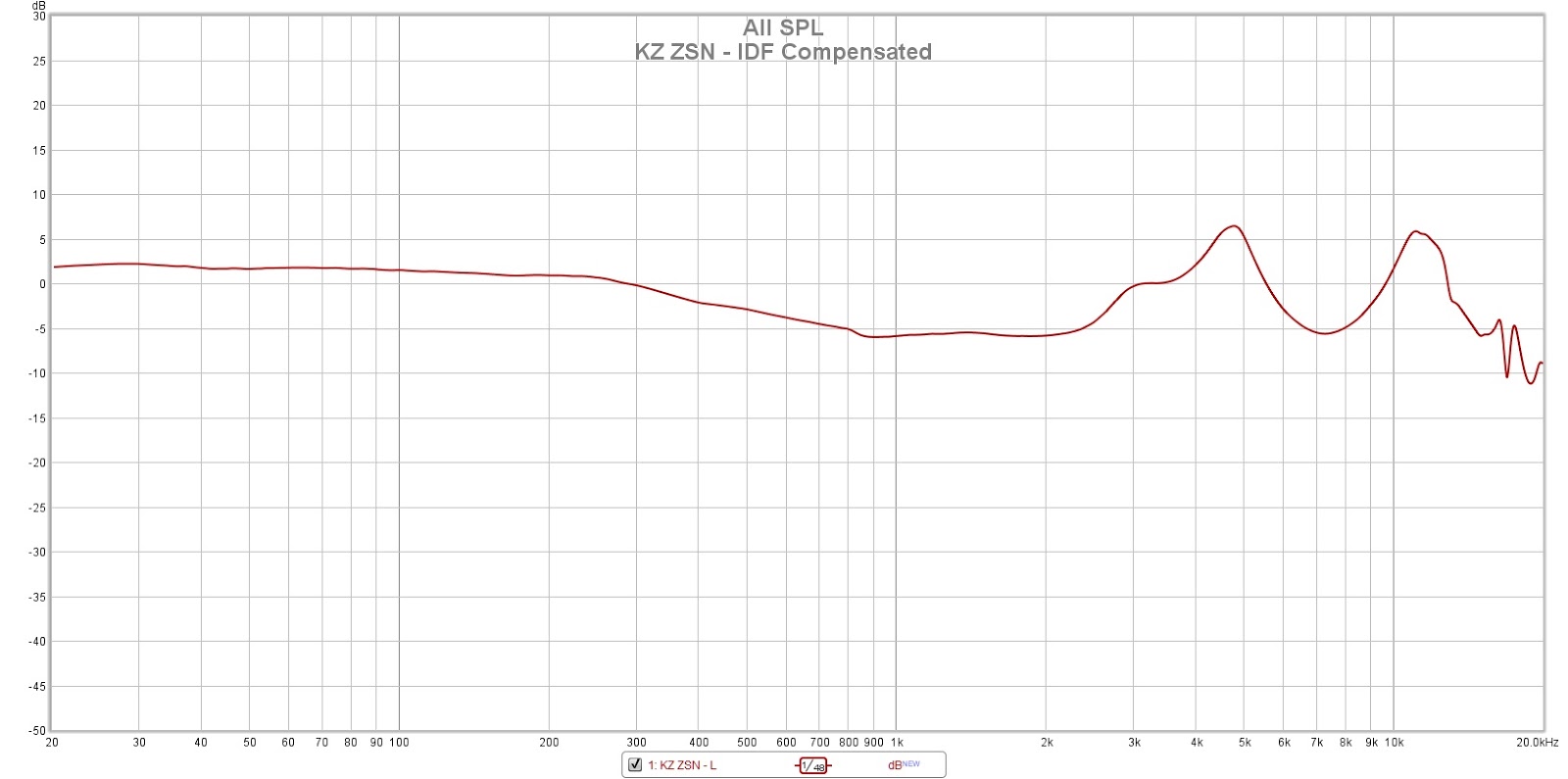

ZSN in detail:
When I first put on the ZSN, I think my jaw dropped and I was giddy with smiles. This was because up until this point, every KZ IEM Iāve heard had exaggerated bass and treble which didnāt really match my personal preferences. While the KZ ZSN still has some peaky upper mids, as characteristic of every KZ IEM Iāve listened to, it does not boost the bass much at all, to my surprise.
The ZSN has clean unadulterated bass, which I really enjoy. Itās doesnāt bloat into the mids and has enough there to give the IEM a slightly warm signature. For the price point, the bass is good enough. Itās a little lacking in the details and texture, but in general, it does its job sufficiently.
The ZSN mids are recessed but nowhere near how they are in the rest of the manufactureās product line. Instead, the ZSN has a slightly dry sound that compares to the how recessed the mids are in one of my favorite headphones ā the Hifiman HE560. The mids in both are just south of neutral before peaking up in the upper mids. The ZSN, however, peaks up more. This gives them an exciting upper range energy that can sometimes be piercing in poorly recorded tracks or songs that emphasized the higher vocal registers.
A few other things before I do a comparison between the two: The treble on the ZSNs is a little uneven, but doesnāt roll-off significantly, which is a surprise at this price point. In terms of soundstage, I find that the ZSN to have a nice medium to wide stage, and imaging is good, especially at this price (repeat theme here).
Overall Comparison
Obviously, these two KZ products differ quite a bit. The ZSN is closer to neutral than any other KZ Iāve had a chance to listen to, and leans slightly bright. The AS06 is also closer to neutral than a lot of the other KZ products, but leans darker, while still retaining a general V-shape signature. It takes a much more laid back, euphoric approach.
The ZSN and AS06 both can run into sibilance and harsh periods, especially if mastering or bitrate is poor, due to steep slopes from the recessed mids to upper mids and treble. I found both to have some unevenness throughout the treble region, with the ZSN winning due to the cleaner transition between the mids and treble. The AS06, in comparison, sounds quite veiled and compressed through the mids ā to the point of sound very low-fi.
The AS06, however, excels in the bass region. It has good low end extension, quality and quantity. If you are looking for something that can shake and bump and overall pleasantly warm, the AS06 does well for its $45 price. The ZSN just canāt match in this department, however, it provides a more audiophile neutral bass response that is cleaner and does not accidentally bleed over and mask vocals with heavy bass lines.
Real Comparisons
KZ AS06 vs KZ AS10
This is the real comparison. The AS10 sounds more detailed and airy compared to the AS06, and this is probably due to its extended and increased upper mids and treble. The AS06 sounds more veiled and compressed instead. I prefer the AS06 in the bass department though, as it does not bleed as much, and feels more controlled in general than the AS10.
The AS10 and AS06 share similar housing and therefore fit should be exactly the same. Thereās an approximately $15 gap between the two models, and itās a tough call. I personally would take the AS10 over the AS06, but in general, I wouldnāt buy either for myself personally.

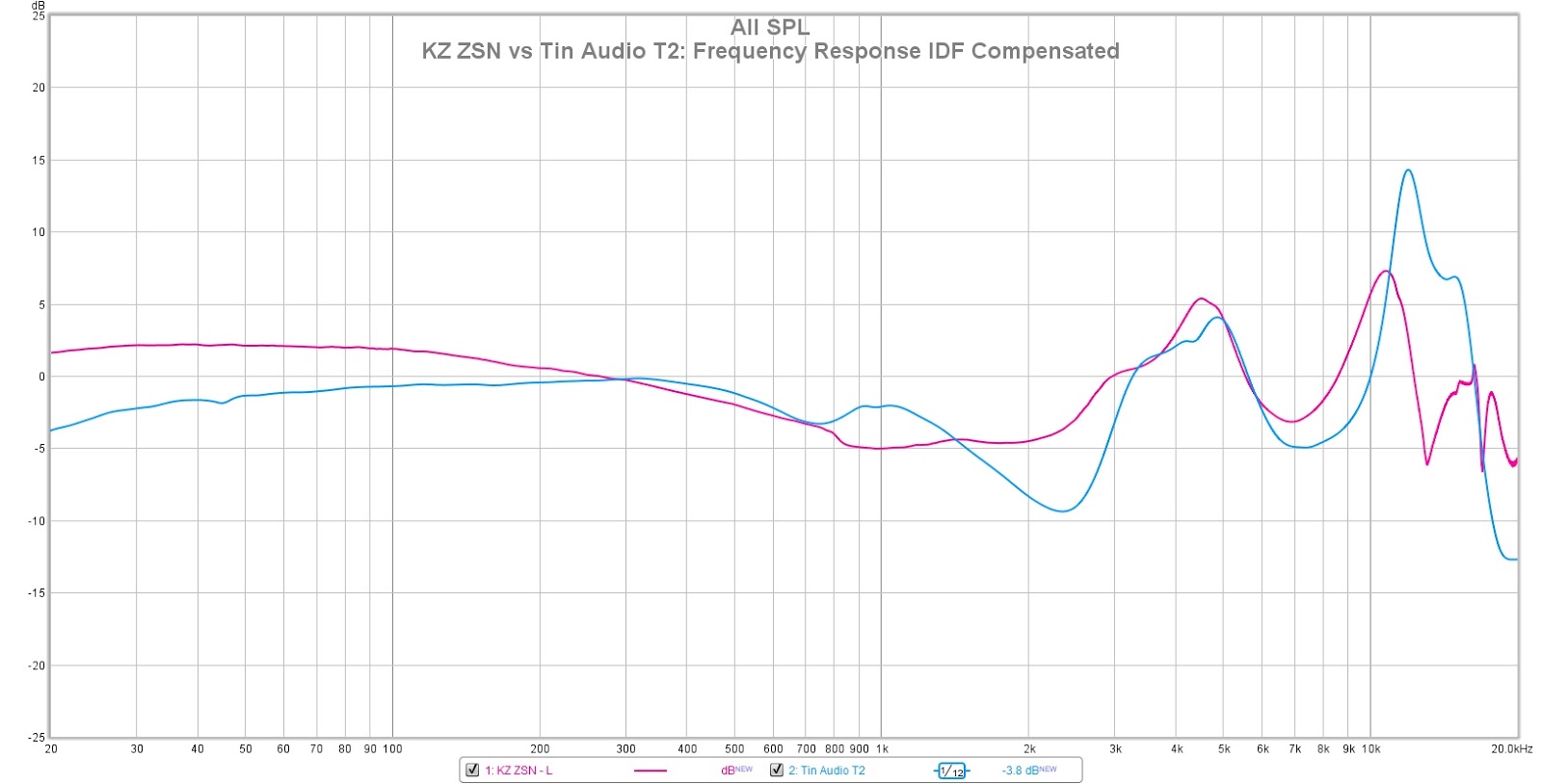

KZ ZSN vs Tin Audio T2
These two IEMs share a lot of commonalities. They are generally neutral sounding budget IEMs that have a sharp peak in the upper mids (3-5KHz) region that can be prone to sibilance and harshness. The general difference, however, is that the T2 does have better treble extension, but a much leaner bass response. The ZSN has a slightly warmer sound due to having about +3dB more bass response, which I think many will enjoy, myself included.
I had slotted the T2 as one of my favorite budget IEM kings, and the ZSN is going to surpass it as one of the best value to performance IEMs on the market. This isnāt something common for me to bestow on Knowledge Zenith, as Iāve never been a fan of any of their IEMs until now. The ZSN is a really good choice, and a great all arounder with small coherence issues and upper harshness that can occasionally rear its head. Those things are rather small for the $20 asking price though.
3 Likes
Itās between the ZSN and the ZS7 for me in terms of raw enjoyment. Iād probably put the ZS7 ahead, if it wasnāt for the pronounced driver-flex issues. But, still, at $23 or so the ZSN is remarkable.
So much so that I ordered another couple of sets of ZSN in order to indulge some aesthetic fantasies, without screwing up the two pairs I have already.
I finally decided I wanted to play with the BGVP DMG ā¦ only to find that Massdrop for them closed yesterday, and now Amazonās delivery date is ever further out than Massdropās was.
Bleh!
Not that any of these are going to replace my tia FourtĆ© or Zeus XRA, and maybe not even my Etyomtic ER4-XR, for normal listening - but theyāre bloody good to leave in various pockets with a suitable dongle permanently on the end.
And they really show whatās possible with very little expenditure (the basic phone dongles all do a really nice job of driving these things).
2 Likes
I have the DMG if you want to borrow it. I can mail it to you. Donāt have any plans to go down to Seattle until the meet-up (if thatās still on) and want to avoid viaduct nightmare during the week.
I was listening to it again this past weekend to compare to the KZs and they really are a step above them in terms of detail retrieval and coherency. They have a V-shape but itās very pleasant and mild-mannered. It does depend on filters and tips use too though. They can quickly become very bassy with the wrong combination or too bright with the wrong seal.
3 Likes
Hmmmā¦errrā¦okā¦at least, this earphone storage unit generated $5 for the āWomen in Needā charity.
2 Likes
Here an example how a FR curve can be deceiving. I purchased the single DD Focal Spark a year ago for $69 CAD (regular price $89 CAD). Focal is a respected French earphone and speakers manufacturer that only has two-and-a-half earphones in the program: the Sphear and the Spark wired/wireless. None of them have received much attention by reviewers.
When first listening to the Spark, I found them ānothing specialā and compared them to the $20 Chifi fare such as the Urbanfun Hifi. At the time, the āflashierā low-budget hybrids came up.
After a long hiatus, I pulled the Spark out again - and measured them. The curve appears to confirm my initial judgement: V-shapeā¦nothing special.
But I have improved my listening skills in the last year, which helped me re-evaluate this earphone. On thing that I had realized from the beginning was the bassā¦as dry as the Gobi desert: very fast attack and decay. That bass hump in the curve is not really audible as expected. Such humps typically indicate a slow bass that smudges into the midrange adding warmth to the tonalityā¦not the case here. The midrange therefore doesnāt sound recessed at all. Piano touch/attack is crisp from the bass to the treble. Voices are well defined and natural. Treble is sparkling. Clarity, detail, and instrument separation are outstanding. The overall tonality is close to neutral.
There is a good depth to the soundstage and not so much width which is also unusual for a low-priced earphone.
Back to the graph: the 3 kHz could be a bit lower in theory, and the treble only rolls off beyond 5 kHz. So, from the midrange on, the curve is just fine.
In summary, the recent emergence of affordable Chifi multidrivers has somewhat intermittently tainted my judgement of capable single DDs. The Focal Spark is a great earphone with a tuning leaning towards āaudiophileā.
The slightly elevated bass works well when walking down the street as it helps filter out the low-frequency street noise.
In summary, the Spark is an overlooked marvel.
P.S. Havenāt discovered any vents to be used for modding.
2 Likes
The spark is $20-30 on Amazon right now and I thought about buying it earlier today lol. My friend lost his Bluetooth version last month and has been sad about it. He got jaybirds from a friend but he prefers his focal spark more.
Get it!
Very sexy looking storage solution.
1 Like
The thing that bugs me about a lot of Western audio products is that important quality-of-life features like detachable cables have not filtered down into Western budget audio products the way they have in Chi-fi.
Call me spoiled but I wouldnāt pay more than $15-20 for a pair of headphones without detachable cables at this point.
1 Like
Iām sort of with you on that. I can stand a 3.5mm single ended non-detachable cable, but would definitely prefer that any earphone that ships as Bluetooth have a detachable cable so it can be used wired if so desired. To me those lightweight small battery Bluetooth cables limit listening time way too much to be viable as I tend to wear something 6-8 hours at a time most days and having to stop and switch so it can recharge kinda sucks.
1 Like
Donāt forget: Chifi is developing rapidly whereas many if not most Sennheiser and Co. models have existed unaltered for years. Such brandname models mostly offer the old school V-shape tuning - they missed the boat on sound signature, too. But where such established companies offer detachable cables and therefore replacements, they are also priced accordingly. Example: Etymotic Research.
On the other hand, most audiophiles are purists that donāt care about cables as they are mostly ājewelryā to them. My ibasso IT01 comes with a cable that is more like a chain.
I do understand that a detachable cable offers the assurance that the earphone is not lost, should the cable get damaged.
My aesthetic experiment on the ZSN wonāt work out ā¦
I was intended on swapping the silver backplates from the purple ZSN onto the grey bodies of the grey ZSN, and vice-versa. But unlike with the ZS7, where the back comes away readily once you remove the screws, with the ZSN the plate is also rather tightly held in place by a recessed insert into the plastic shell.
I got to the point where I felt I was either going to crack the shell or it was going to come apart with enough force that it would probably damage/eject something internal and still hadnāt budged, so I stopped going down that path (Iād have had to do it four times, and I wasnāt confident it was going to work ONCE at this point).
Thereās nothing flimsy about the way these suckers were assembled.
2 Likes
I have been listening a lot to the Artiste DC1 and Elecom CB1000 recently. They are both hybrid IEMs employing 1DD+1ceramic (piezoelectric) driver. These have a remarkable transient response and immediacy, due to the fact there are no moving parts in the ceramic unit. They also have an oversized (13mm) DD. I have also just ordered the Senfer DT6 triple driver IEM (1DD+1BA+ceramic). Anyone else out there enjoy these? They produce a wonderful soundstage.
1 Like
Per @eclein and @Brause comments, I had added the CCA C10 to my prior ZSN order. And as @eclein says, itās very clear these share some parts with the ZSN. Other than not being screwed together (which I donāt think is actually needed with the ZSN, see above), and a change in the style (if not the shape) of the backplate and the connector, they look essentially the same.
First impressions are that the CCA C10 take my favorite parts of the ZS7 and ZSN, remove most of the bits I didnāt like (i.e. thereās no driver flex, theyāre not as energetic in the top end as the ZSN, but more so, and with better clarity than the ZS7), and then split the difference on price.
I prefer the finish on the ZSN (bright silver on the backplates rather than a flat, aluminum, finish) and the build of the ZS7, but sound wise this is, so far, the sweet spot between the two.
4 Likes
The C16 is like 90ish in several AliExpress stores if anyone is interesred. Iām expecting TRN IM1 anyday now. I love the TRN V80 and this has the same low end Iām told.
My guy is working on getting a C16 in for me to buy or try its not clear yetā¦lolā¦thats the one I want to hear. Hopefully KZ/CCA donāt drop the ball with itā¦huge iem for them, could really jet them upward or not.
Iāll be backā¦! Ttyl8r folks
4 Likes
Probably getting away from āultraā cheap here, but the other ācheapā ($46) IEM I picked up with my last Amazon order was the Final Audio E3000.
This is a single-driver dynamic design, fixed cable and with a metal shell. Nothing especially interesting in terms of aesthetics.
Rather natural sounding, if not neutral - bass is quite satisfying and a little elevated (and enjoyably so), but very smooth and even compared to some of the more tilted KZ stuff. Maybe a gentle V-shape, but the treble is not aggressive, obviously elevated or otherwise peaky. An easier, and more musical, listen than the ZSN or ZS6 and not as restrained on the top end as the ZS7. Dynamics and slam are very solid. Excellent coherence (not uncommon with single-driver designs).
Need to compare it properly to the T2 and T2 Pro ā¦ but on first blush think Iāll prefer it to the tuning of the T2 Pro.
2 Likes
The frequency response shown on the Amazon product page looks very Harman like.
2 Likes
this is a dangerous threadā¦along the lines of the $100 DACs and ampsā¦next thing you know you just spent $500 on twenty IEMs lolā¦Iāve only picked up 2 and a cable so farā¦ābe strong!ā
3 Likes
